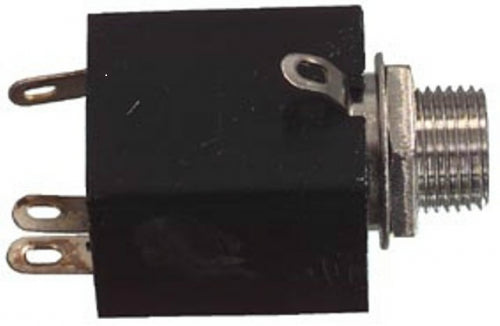

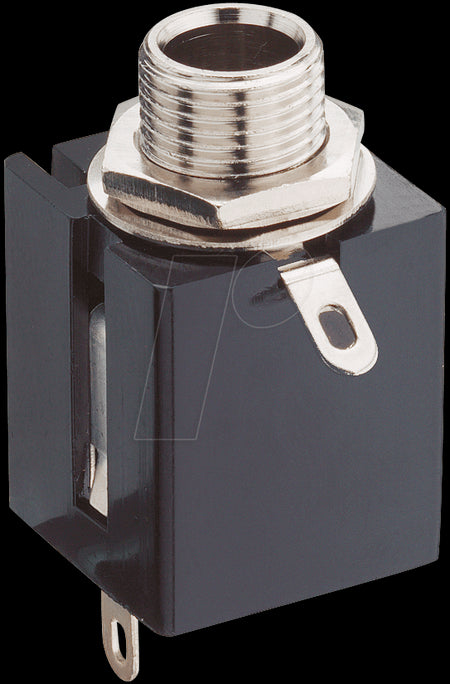

Conector alimentare 6.3 mm sasiu stereo Lumberg

Conector audio-alimentare 6.3 mm sasiu stereo.

• Priza pentru panoul de conectare (cuplaj montat pe panou)

• 6,35 mm

• 3 pini / stereo

• Cu contact NC

• Cu ochiuri de lipit

• Pentru montare pe panou



Informa?ii tehnice

General

TipPriza panou Jack

Model KLB

Proiectat Stereo

Num?rul poli 3

Material Carcas? din plastic

Tehnologie Cu ochi de lipit

Temperatur max.-20 ... +70

Culoare Argintiu / negru



Specifica?ie

Cu contact NC, pentru montare pe spate

interfe?e

Conexiune 6,35 mm

Valori electrice

Aprobare Potrivit JIS C 6560 JC63J3Z

Limita de înc?rcare0,5 A / 34 V



Jack chassis socket acc. to JIS C 6560 JC63J3Z, 6.35 mm, 3 poles/stereo, with break contact and solder eyes, for back side mounting

1. Temperature range -20 °C/+70 °C

2. Materials

Body PC, V2 according to UL 94

Contact bush CuZn, nickeled

Solder terminal Cu alloy, silvered

CuZn, nickeled

Washer steel, nickeled

Nut steel, nickeled

3. Mechanical data

Insertion force 5–40 N

Withdrawal force 5–40 N

Mating cycles ? 10000

Mating with jack plugs KLS 3, KLS 33

4. Electrical data

Contact resistance ? 50 m?

Rated current 2 A

Rated voltage 34 V AC/DC

Test voltage 250 V/60 s

Insulation resistance ? 5 x 107 ? Accesoriu: Conector Tip: 6,3 mm stereo Conector: JACK A Conector: Jack 6.3 mm stereo mama Standard: STEREO Marca: Lumberg Garantie: 24 luni persoane fizice / 12 luni persoane juridice
